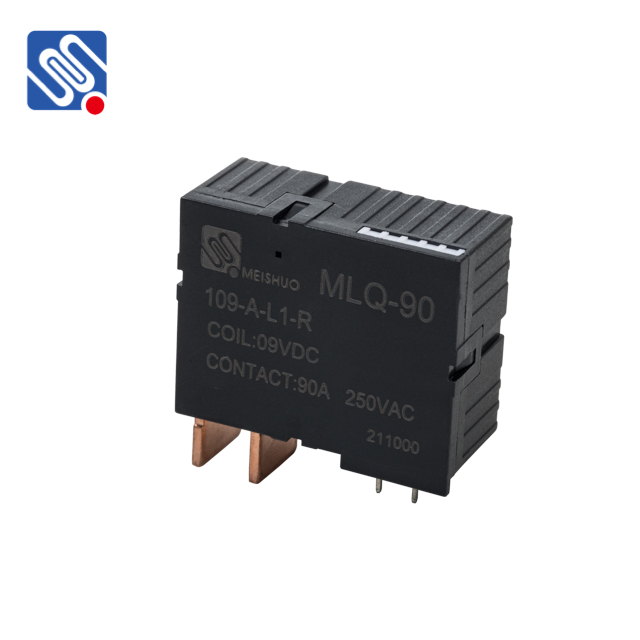

A bistable relay, often referred to as a latching relay, is a type of electrical relay that has two stable states. Unlike traditional relays that require continuous power to maintain their position, a bistable relay only requires power during the switching process, offering significant power-saving advantages. This feature makes bistable relays particularly valuable in applications where energy efficiency is a priority. In this article, we will explore the working principle, advantages, applications, and future prospects of bistable relays.
Working Principle of Bistable Relays A bistable relay operates by utilizing two distinct magnetic states, enabling it to maintain its position without a constant supply of power. In a typical bistable relay, there are two electromagnets that act in opposition. When a pulse is applied to the first electromagnet, it shifts the relay into one of its stable positions. To change the state again, a pulse is applied to the second electromagnet, causing the relay to shift into the other stable state. These two stable positions are maintained until a new pulse is sent. Unlike conventional relays, which are spring-loaded and require continuous power to hold the relay in a particular state, bistable relays require power only to switch between the states. Once the relay reaches its target state, it can remain there indefinitely without the need for additional power. This unique characteristic of bistable relays is the key to their power-saving potential.
