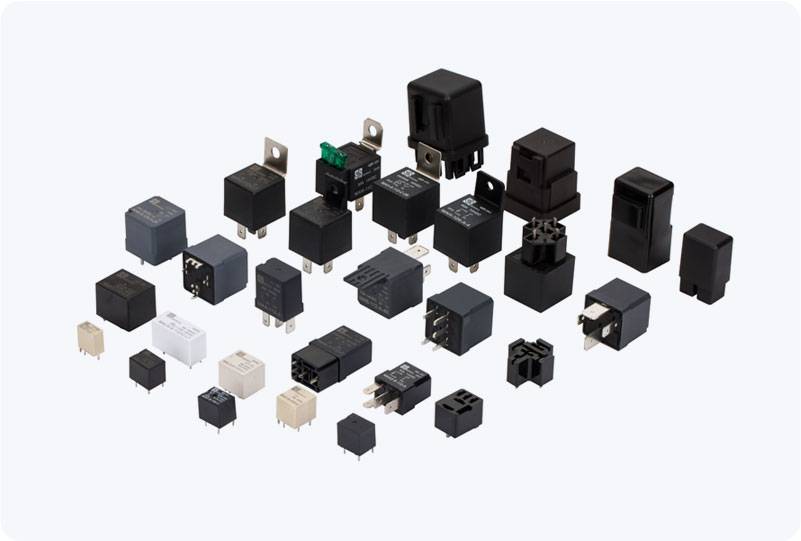

A Low Voltage DC Relay is an essential component in modern electrical and electronic systems, widely used to control low-voltage direct current circuits. Unlike traditional high-voltage relays, low voltage DC relays operate at a lower voltage level, typically ranging from 5V to 48V DC. This makes them suitable for various applications, from automotive electronics to smart home devices, where precise control of electrical circuits is required without directly handling high currents.
At its core, a low voltage DC relay operates based on the electromagnetic principle. When a small voltage is applied to its coil, it generates a magnetic field. This magnetic field attracts a movable armature, which either closes or opens the relay’s contacts, depending on the design. The contacts then complete or interrupt the circuit, allowing a low-voltage signal to control a much larger electrical load. This ability to use a small control signal to manage higher current devices makes low voltage DC relays indispensable in automated systems. One of the most important features of low voltage DC relays is their compact design. Since they operate at lower voltages, their coils require less energy, and the entire relay can be made smaller and lighter. This compactness is especially valuable in applications like consumer electronics and embedded systems, where space is limited. Additionally, their mechanical design allows for reliable switching over thousands of cycles, providing durability and long service life when properly rated for the load.
